T5, Ballast type, programmable, 0-10V depth dimming

LED driver power supply

0-10V depth dimming type

Additional information


55W, 75W


100-240V, 175-240V


12V, 24V

Product Processes

Product Details:

LX series T5, Ballast type, programmable, 0-10V depth dimming

1, drive mode: no strobe constant current drive, the first stage isolation type

2, linear (or logarithmic) precision dimming, dimming ratio of 100:1

3, technology type: PFC + PWM dual-level Flyback technology

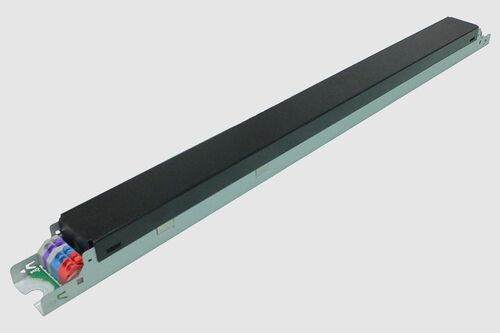

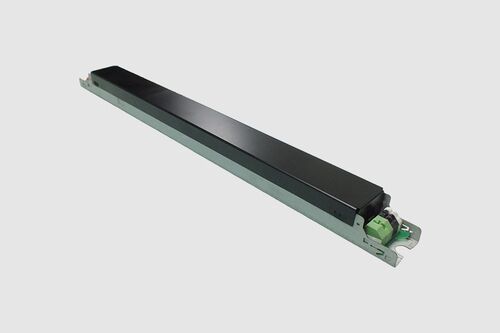

4, output power: 55W, 75W

5, input voltage: 120 ~ 277VAC, 47-63HZ

6, primary side dimming: 40% or 100% optional, via L1 &L2

7, Output: 27~55Vdc/100-1500mA programmable setting

8, Comply with UL & cUL, PSE, CE, CCC safety certification.

North American safety standards: UL8750, CSA C22.2, LED Driver Class A

European safety standards: EN61347-1:2008, EN61347-2-13:2006

Japanese safety standard: J61347-1 (H20), J61347-2-13 (H21)

China Safety Standard: GB19510.1-2009, GB19510.14-2009

North American EMC standard: FCC 47CFR Part 15 Class B

European EMC standard: EN55015, EN61000-3-2, EN61000-3-3

Japan EMC standard: J55015 (H20)

China EMC standard: GB17743-2007, GB17625.1-2003

9, Conform to RoHs standard, conform to IP20 waterproof grade.

a, 94V-0 150 °C partially potted with thermally conductive silicone, black steel housing.

b, suitable for use in indoor environments and high humidity, high dust environments.

c. Use of active PFC (Power Factor Correction) technology to reduce product power consumption.

d. Anti-surge: complies with EN614000-4-5, 2KV/4KV, 8/20usec transient protection.


Typical application 1.


Typical application 2.


Power-limited area.
