Ultra Indoor LED Power Supply
Slim ultra thin power supply IP20.Power range from 36W to 300W, High efficiency with sufficient power
2 hours 100% full-load burn-in test before shipping; OVP, OLP, OTP and short circuit protection programmed
CE ROHS FCC certified
Additional information
| Power | 36W, 60W, 100W, 120W, 150W, 200W, 250W, 300W, 360W, 400W |
|---|---|
| Input | 100-240V, 175-240V |
| Output | 5V, 12V, 24V |
Product Processes
Power Supply Metal Slim with Cooler
Also called Driver, it is ideal for LED products requiring 12V voltage and power up to 400W.
Range 60 watts to 400 watts, 60W to 250W without fan，350W and 400W with a fan.
12VDC 60W to 400W
24VDC 60W to 400W
Product Details:
| Series No. | Power (W) | AC input (V) | DC output (V*A) | Water Level | Size(mm) | Weight (KG) | PCS/CTN | CTN Size | Total KG |
|---|---|---|---|---|---|---|---|---|---|

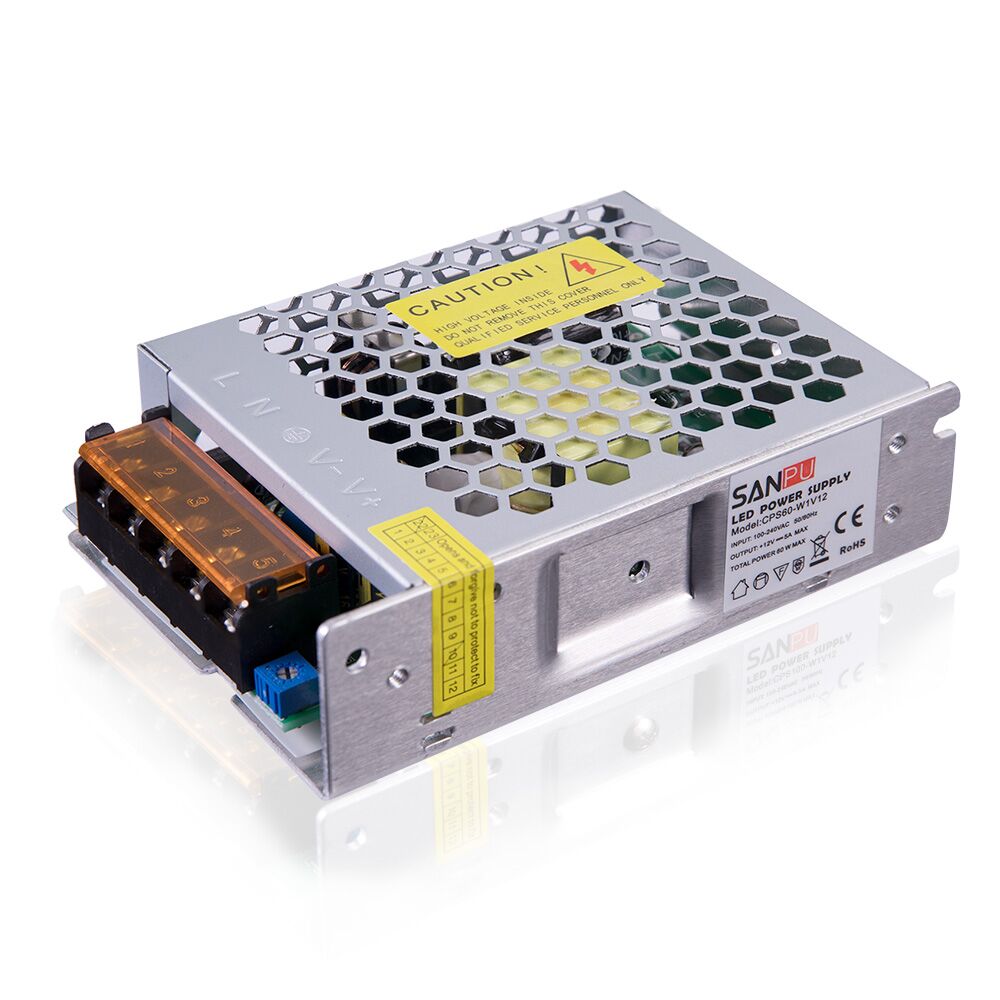

| CPS60-W1V12 | 60W | 100-240V | 12V/24V | IP20 | 110.57*78*30 | 0.21 | 66 | 430*278*250 | 14.65 |

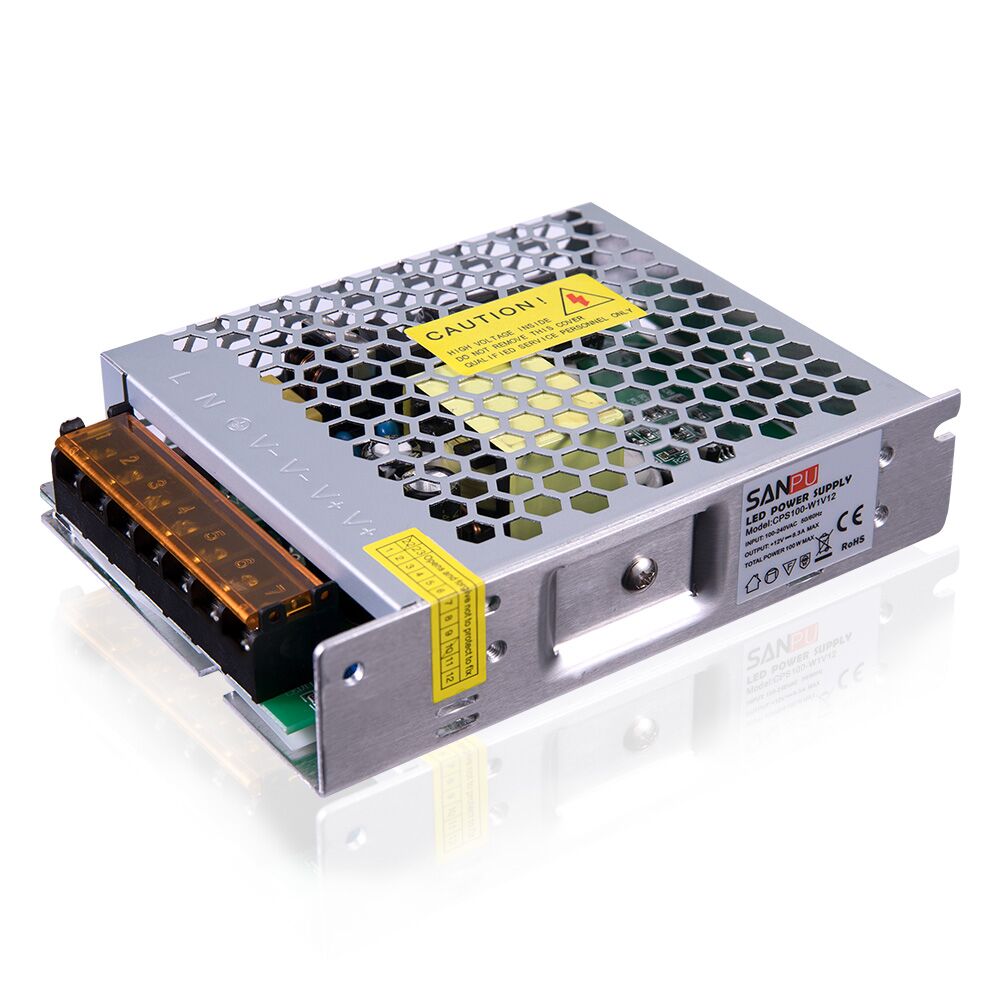

| CPS100-W1V12 | 100W | 100-240V | 12V/24V | IP20 | 129*97.9*30 | 0.29 | 42 | 430*278*227 | 12.66 |

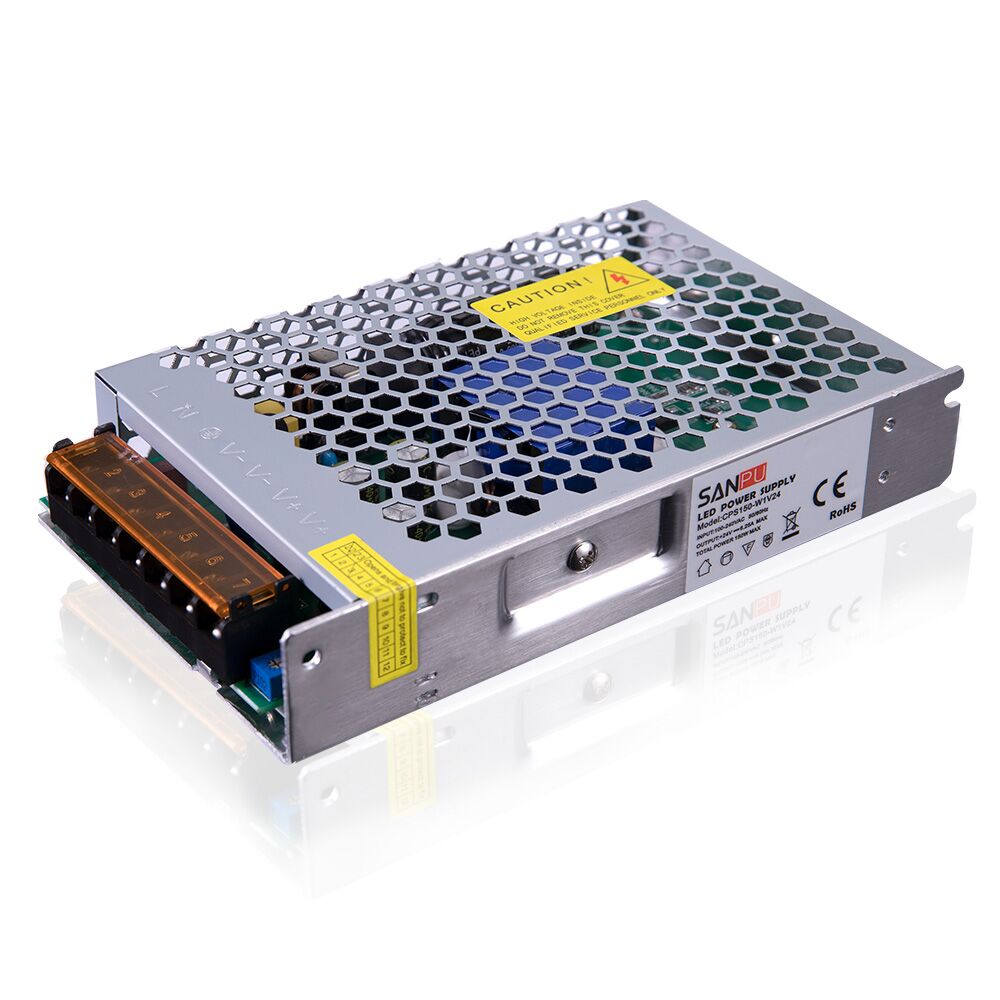

| CPS150-W1V12 | 150W | 100-240V | 12V/24V | IP20 | 160*98*30 | 0.35 | 40 | 395*357*235 | 14.42 |
| CPS250-H1V12 | 250W | 110V/220V | 12V/24V | IP20 | 160*98*30 | 0.45 | 40 | 395*357*235 | 18.62 |
| CPS350-H1V12 | 350W | 110V/220V | 12V/24V | IP20 | 215*105*29.5 | 0.69 | 28 | 430*278*250 | 19.84 |

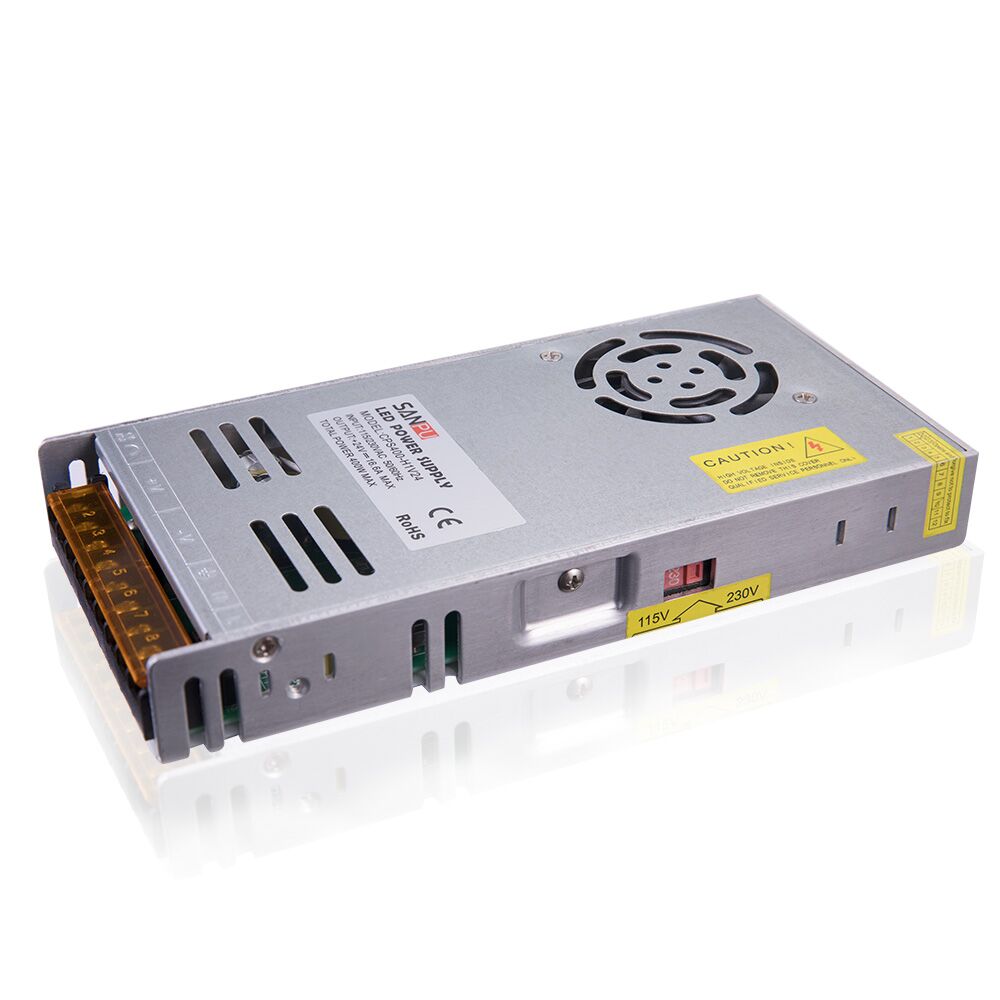

| CPS400-H1V12 | 400W | 110V/220V | 12V/24V | IP20 | 215*105*29.5 | 0.69 | 28 | 430*278*250 | 19.84 |
