IP67 Strip Slim Waterproof LED Power supply

Category Tags ,

Dimmer Power Supply 0/1-10V Triac Dimmable. IP20

Power range from 60W to 300W, High efficiency with sufficient power

2 hours 100% full-load burn-in test before shipping

OVP, OLP, OTP, and short circuit protection programmed

CE ROHS FCC certified

Additional information

Power

60W, 100W, 120W, 150W, 200W, 250W, 300W

Input

100-240V, 175-240V

Output

12V, 24V

Product Processes

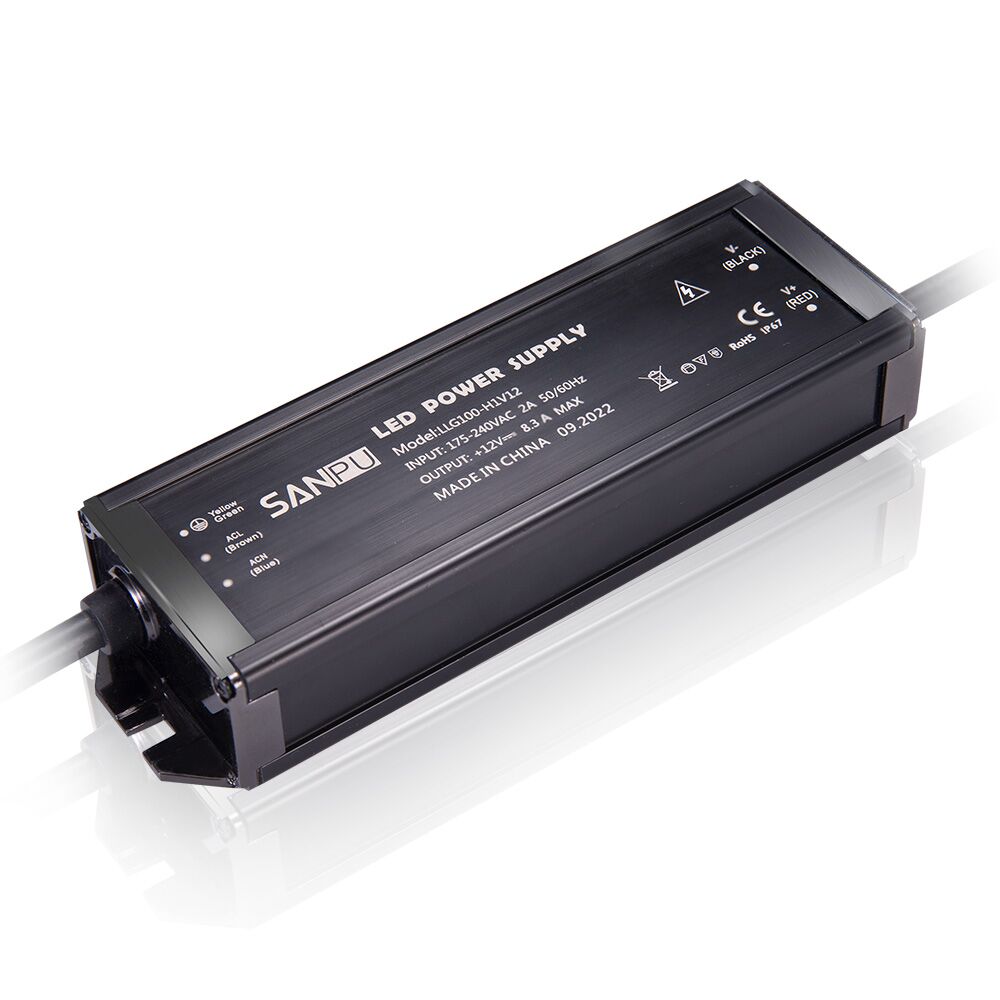

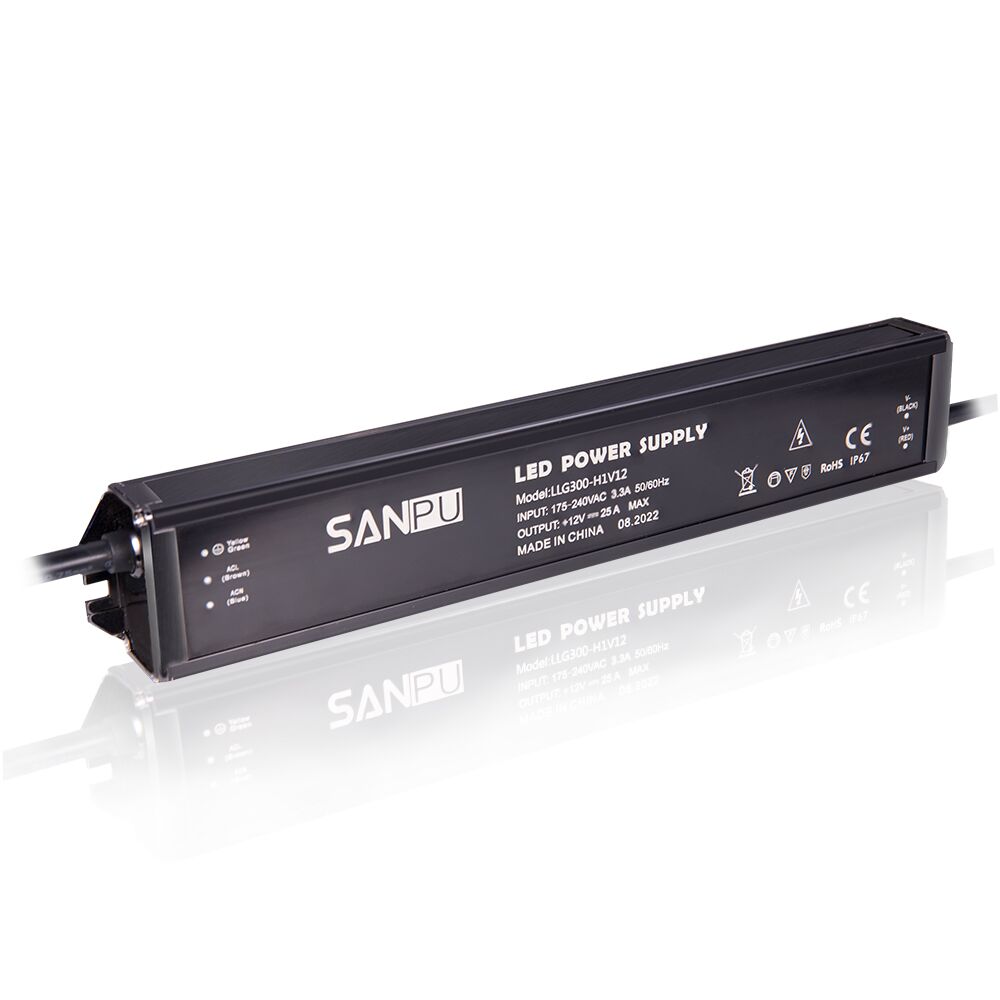

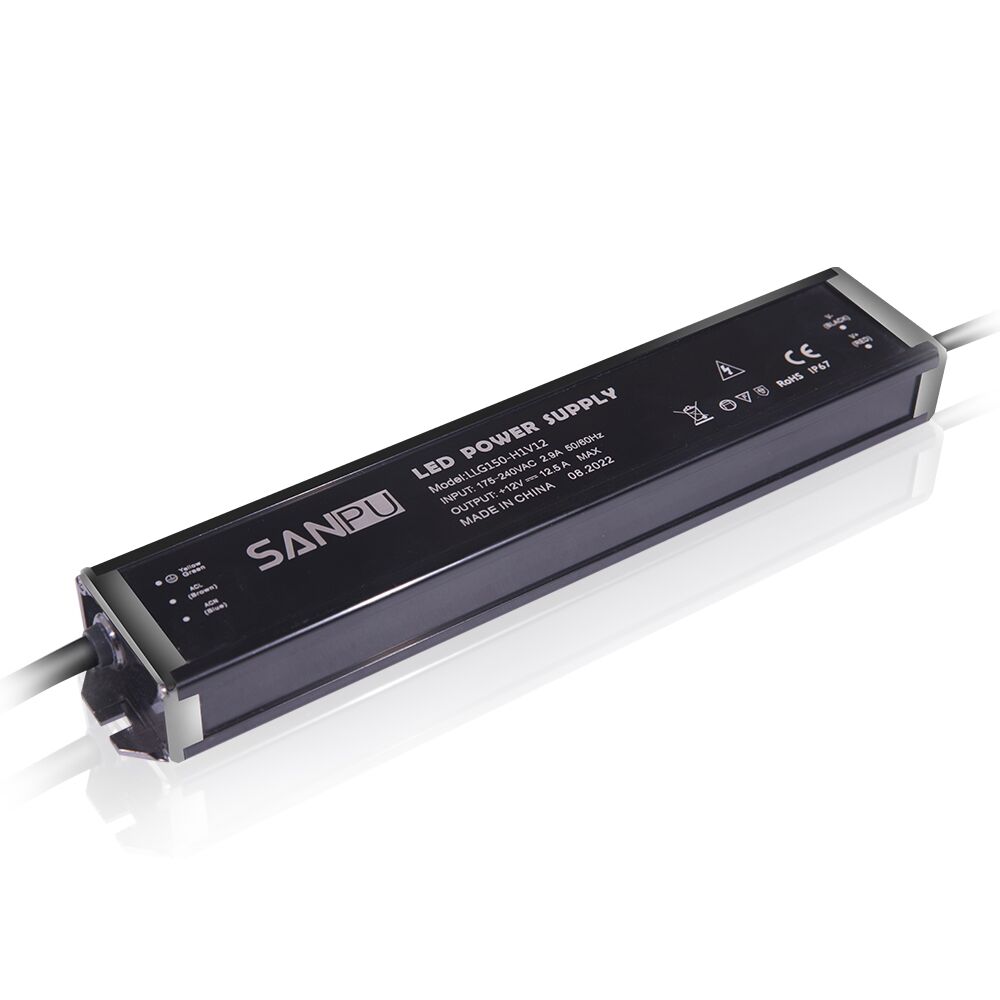

12V/24V 60W-300W Slim Strip Power Supply

  • VOLTAGE RANGE: AC 100-240V/200-240V
  • FREQUENCY RANGE:47-63Hz
  • DC VOLTAGE: DC 12V/24V OUTPUT
  • CURRENT RANGE: 60W 100W 150W 200W 250W 300W
  • Efficiency: >89%
  • Working temperature: ta: -30 ~ 55 °C Tc: 80 °C

Product Details:

Product Feature

  • Aluminum slim strip shell IP67 can be used in the bathroom, indoors, or in a rainproof box.
  • Ultra-thin fanless cooling design, no noise from the fan.
  • 100% full load burn-in test.
  • Protections: short circuit, overload, over-voltage, over-temp.
  • Built-in high-performance MCU dimming curve.
  • Multi-current & wide voltage, suitable for different power LED.
  • Compliant with Safety Extra Low Voltage standard.
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN Size
LLG6060W100-240V12V/24VIP67143.5*44*250.350375*305*170
LLG100100W100-240V12V/24VIP67143.5*44*250.350375*305*170
LLG150150W100-240V12V/24VIP67238*44*250.4830315*300*205
LLG200200W175-240V12V/24VIP67238*44*250.4830315*300*205
LLG250250W175-240V12V/24VIP67268*44*250.5825325*305*170
LLG300300W175-240V12V/24VIP67268*44*250.5825325*305*170

Other Slim Strip Plastic Power Supply

Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN Size
LLP6060W100-240V12V/24VIP67182*32.6*230.14100395*295*210
LLP100100W100-240V12V/24VIP67182*32.6*230.14100395*295*210
LLP150150W100-240V12V/24VIP67223*32.6*230.250295*245*210
LLP200200W175-240V12V/24VIP67223*32.6*230.250295*245*210
LLP250250W175-240V12V/24VIP67256.6*45*230.3650295*280*270
LLP300300W175-240V12V/24VIP67256.6*45*230.3650295*280*270
