LED driver power supply, 0-10V depth dimming type, auxiliary 12V output

LED driver power supply

0-10V depth dimming type

Additional information


30W, 40W, 50W


100-240V, 175-240V


12V, 24V

Product Processes

Product Details:

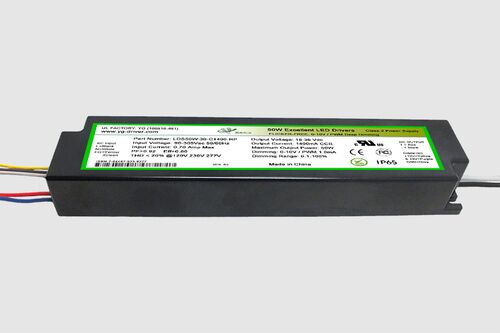

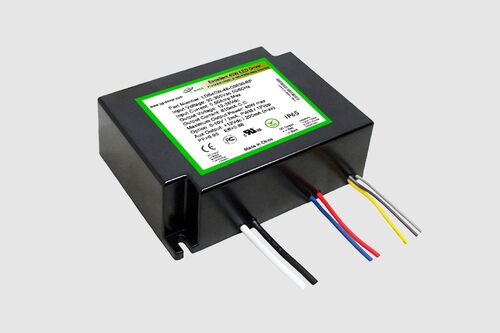

LDS30W series, LED driver power supply, 0-10V depth dimming type, auxiliary 12V output

1, drive mode: strobe-free constant current drive, the first stage isolation type

2, linear precision dimming, dimming ratio of 100:1

3, technology type: PFC + PWM dual-level Flyback technology

4, output power: 30W, 40W, 50W

5, input voltage: 90~305VAC, 47-63HZ

6, Output voltage: 8 kinds of specifications are available, range 6~85Vdc

7, Compliant with UL & cUL, PSE, CE, CCC safety certification.

North American safety standards: UL8750, CSA C22.2, LED Driver Class 2

European safety standards: EN61347-1:2008, EN61347-2-13:2006

Japanese safety standard: J61347-1 (H20), J61347-2-13 (H21)

China Safety Standard: GB19510.1-2009, GB19510.14-2009

North American EMC standard: FCC 47CFR Part 15 Class B

European EMC standard: EN55015, EN61000-3-2, EN61000-3-3

Japan EMC standard: J55015 (H20)

China EMC standard: GB17743-2007, GB17625.1-2003

8, Meets RoHs standard, meets IP65 waterproof grade.

9, 94V-0 150 °C thermally conductive silicone potting, plastic housing.

a, suitable for use in indoor environments and high humidity, high dust environments.

b, using active PFC (power factor correction) technology to reduce product power consumption.

c, anti-surge: comply with EN614000-4-5, 2KV/4KV, 8/20usec transient protection.
