Plastic Indoor LED Power Supply
Slim ultra thin power supply IP40.Power range from 7W to 100W, High efficiency with sufficient power
2 hours 100% full-load burn-in test before shipping; OVP, OLP, OTP and short circuit protection programmed
CE ROHS FCC certified
Additional information
| Power | 15W, 35W, 60W, 75W, 100W |
|---|---|
| Input | 100-240V, 175-240V |
| Output | 5V, 12V, 24V |
Product Processes
Plastic Power Supply indoor use
Also called Driver, it is ideal for LED products requiring 12V 24V voltage and power up to 60W.
Range 15 watts to 60 watts, without a fan
12VDC 15W to 60W
24VDC 15W to 60W
Product Details:
Choosing the Correct Power Supply for LED Strip Lighting
Learn about the importance of current and voltage in LED lighting fixtures and how to choose the right power supply for your needs.
| Series No. | Power (W) | AC input (V) | DC output (V*A) | Water Level | Size(mm) | Weight (KG) | PCS/CTN | CTN Size | Total KG |
|---|---|---|---|---|---|---|---|---|---|

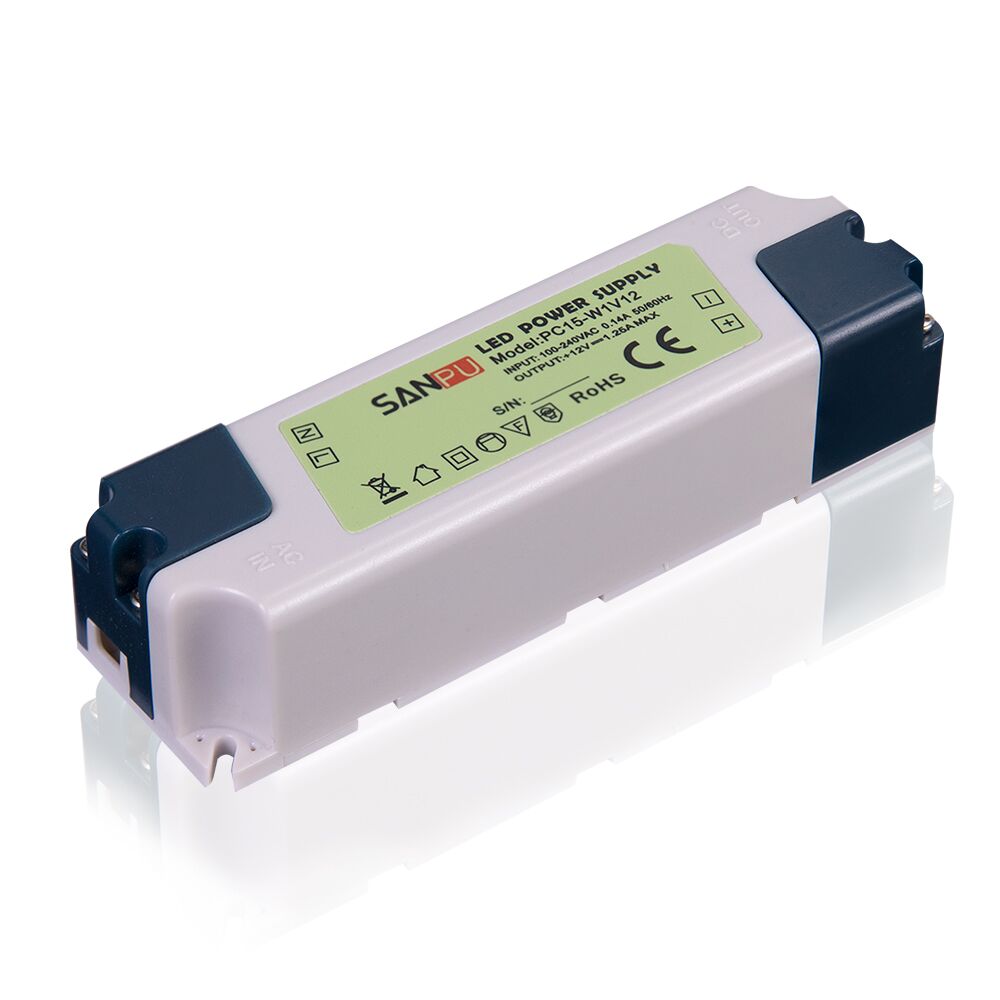

| PC15-W1V12/24 | 15W | 100-240V | 12V/24V | IP40 | 100*29.5*22 | 0.1 | 100 | 325*248*225 | 12.42 |

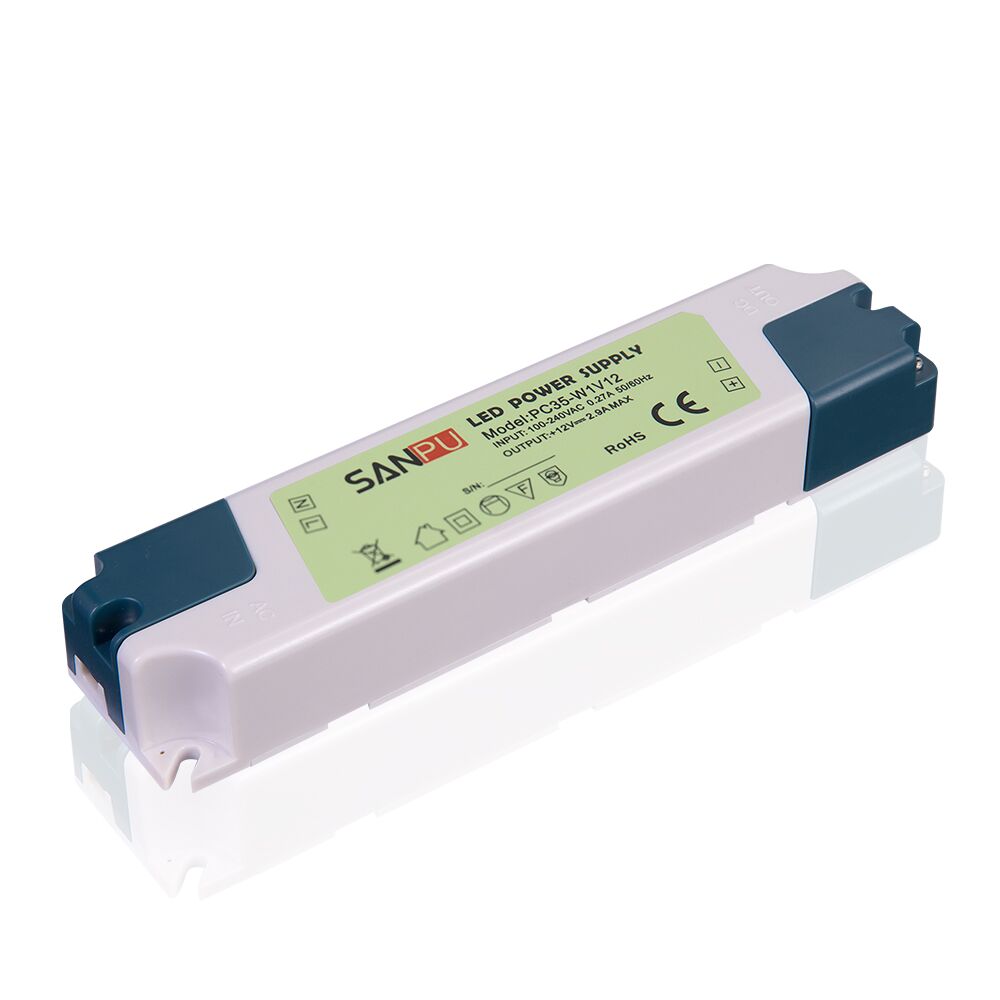

| PC35-W1V12/24 | 35W | 100-240V | 12V/24V | IP40 | 145*38*22 | 0.15 | 80 | 330*240*260 | 8.52 |

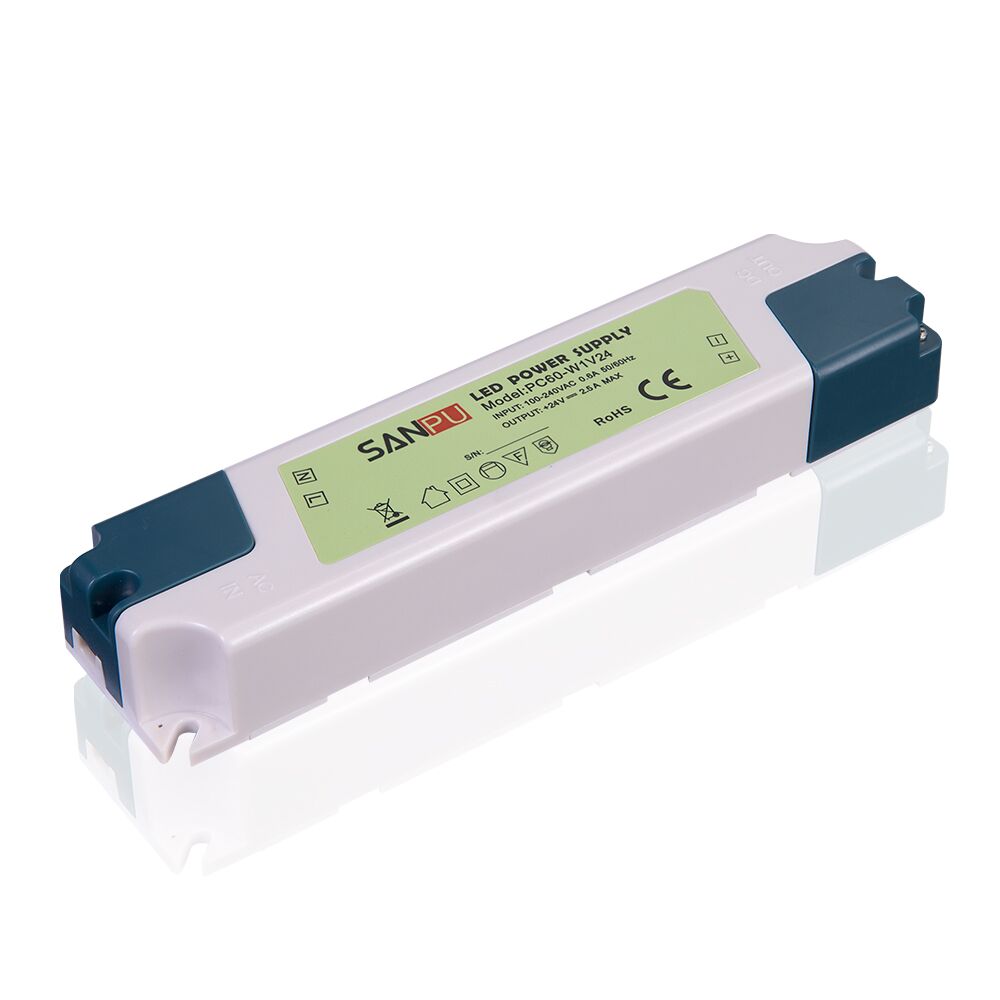

| PC60-W1V12/24 | 60W | 100-240V | 12V/24V | IP40 | 175.5*42*24 | 0.2 | 100 | 400*315*270 | 16.38 |
