Aluminum Slim Series Light Box Advertising Use LED Strip Power Supply 150W 250W
Dimmer Power Supply 0/1-10V Triac Dimmable. IP20
Power range from 60W to 300W, High efficiency with sufficient power
2 hours 100% full-load burn-in test before shipping
OVP, OLP, OTP, and short circuit protection programmed
CE ROHS FCC certified
Additional information
| Power | 35W, 60W, 150W, 250W, 300W |
|---|---|
| Input | 100-240V, 175-240V |
| Output | 12V, 24V |
Product Processes
Slim Black LED Power Supply CLL
Also called Driver, it is ideal for LED products requiring 12V voltage and power up to 250W.
Range 35 watts to 250 watts without a fan
12VDC 35W 60W 150W 250W
24VDC 35W 60W 150W 250W
Product Details:
Slim Strip Power Supply 150W 250W
Aluminum Case Slim Series
Light Box Advertising Use
150w 12vdc output, 100-240vac input
led switching power supply/lighting transformer
(Package: 1 x CLL150-W1V12)
Product Feature
1. Aluminium shell, slim type
2. Special use for Lightbox/Lightbox advertising
3. Double-Sided Boards Design(PCB)
4. Ultrathin fanless cooling design.
5. 100% full load burn-in test.
6. Protections: short circuit, overload, over-voltage, over-temp.
| Series No. | Power (W) | AC input (V) | DC output (V*A) | Water Level | Size(mm) | Weight (KG) | PCS/CTN | CTN Size | Total KG |
|---|---|---|---|---|---|---|---|---|---|

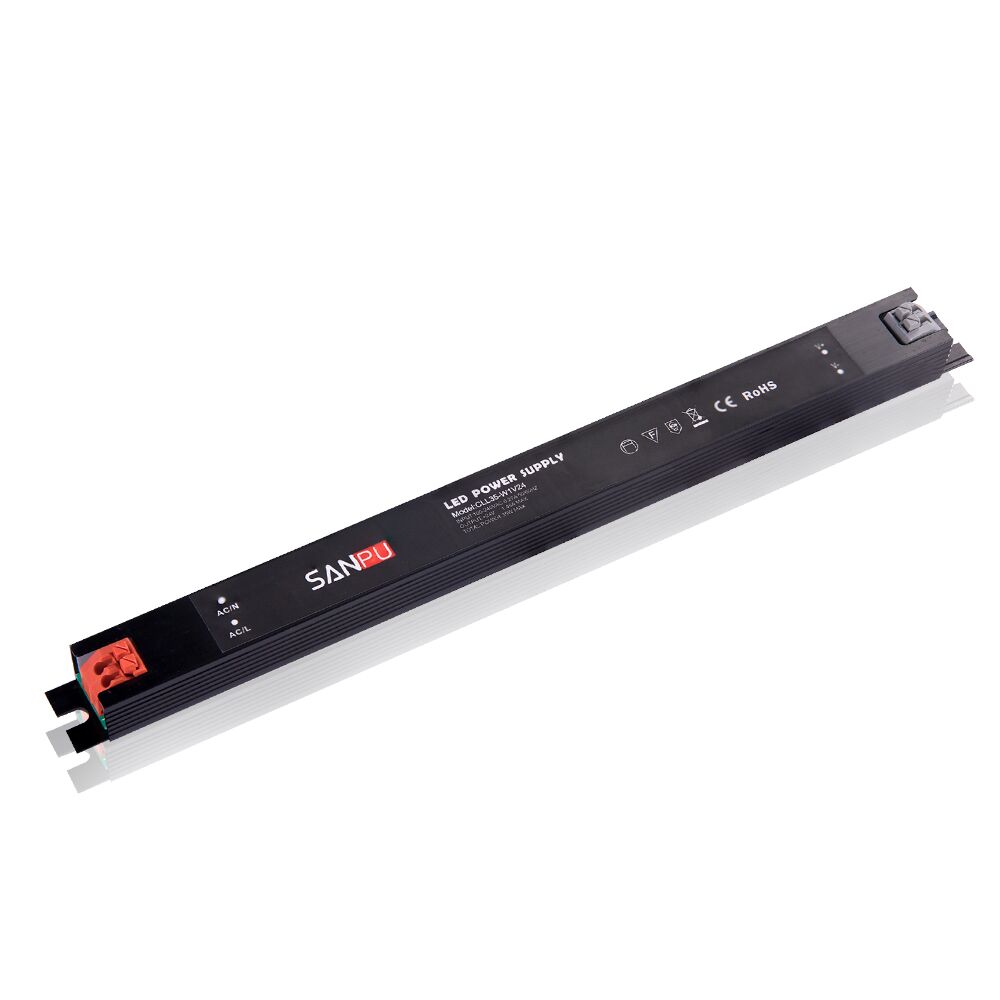

| CLL35-W1V12 | 35W | 100-240V | 12V/24V | IP20 | 229*18*15 | 0.08 | 135 | 325*245*225 | 10.8 |
| CLL60-W1V12 | 60W | 100-240V | 12V/24V | IP20 | 316*18*15 | 0.19 | 110 | 350*220*275 | 20.9 |

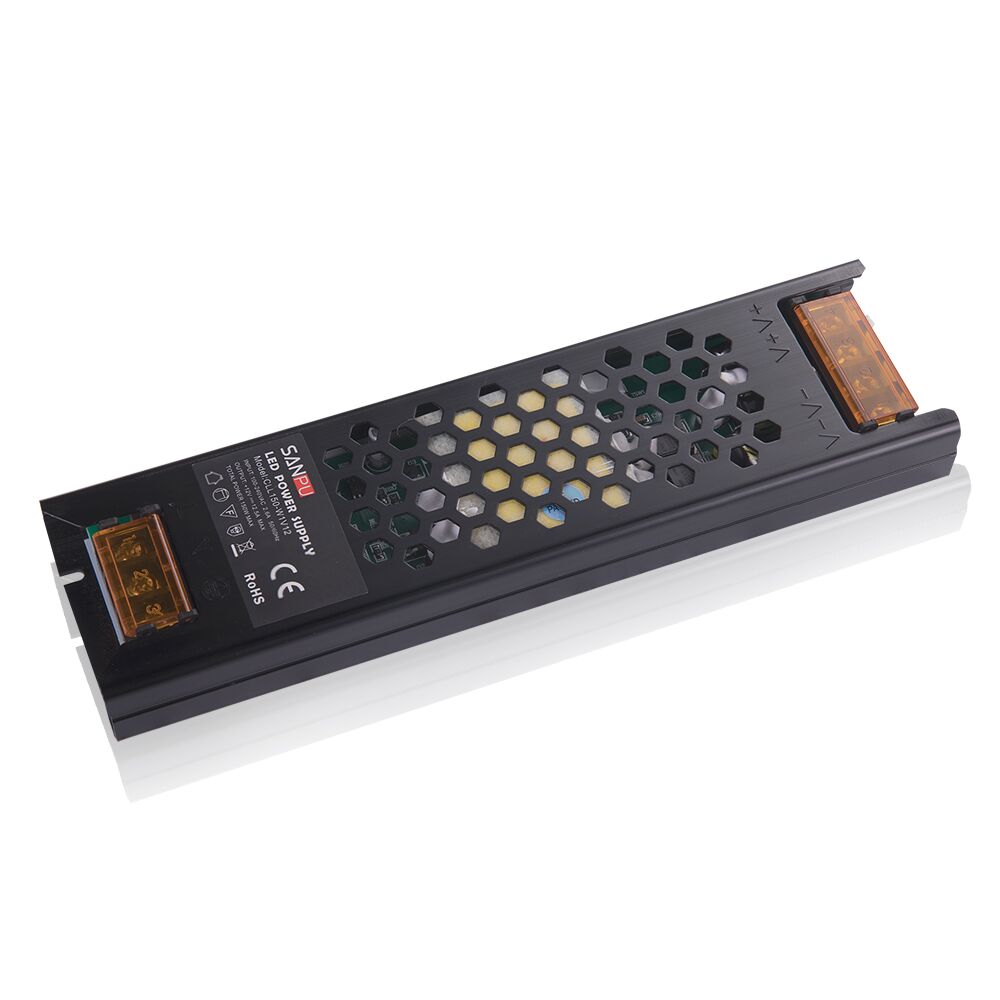

| CLL150-W1V12/24 | 150W | 175-240V | 12V/24V | IP20 | 202*55*22 | 0.35 | 30 | 325*245*225 | 10.5 |

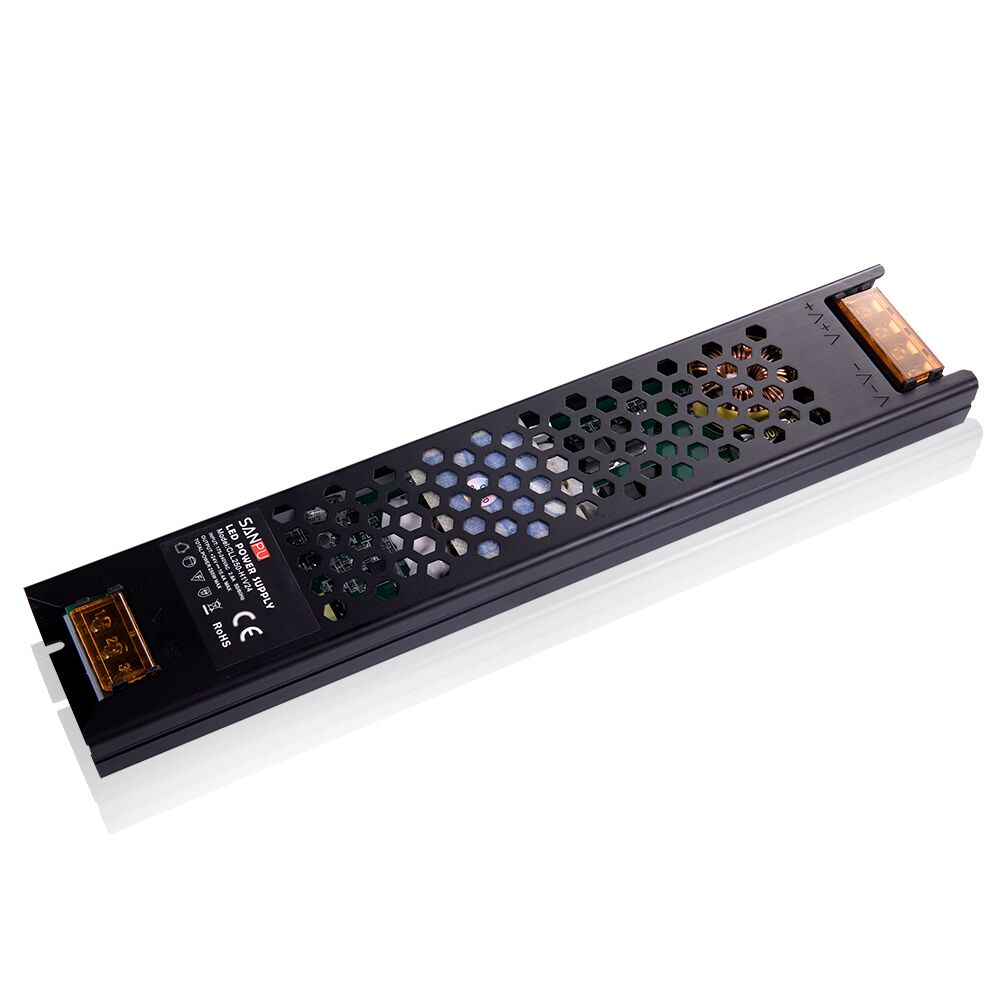

| CLL250-H1V12/24 | 250W | 175-240V | 12V/24V | IP20 | 280*55*22 | 0.48 | 21 | 325*245*225 | 10.08 |
Product Label
SANPU Logo & No Logo
Product Wiring
Product Dimension(mm)
Product Packing
