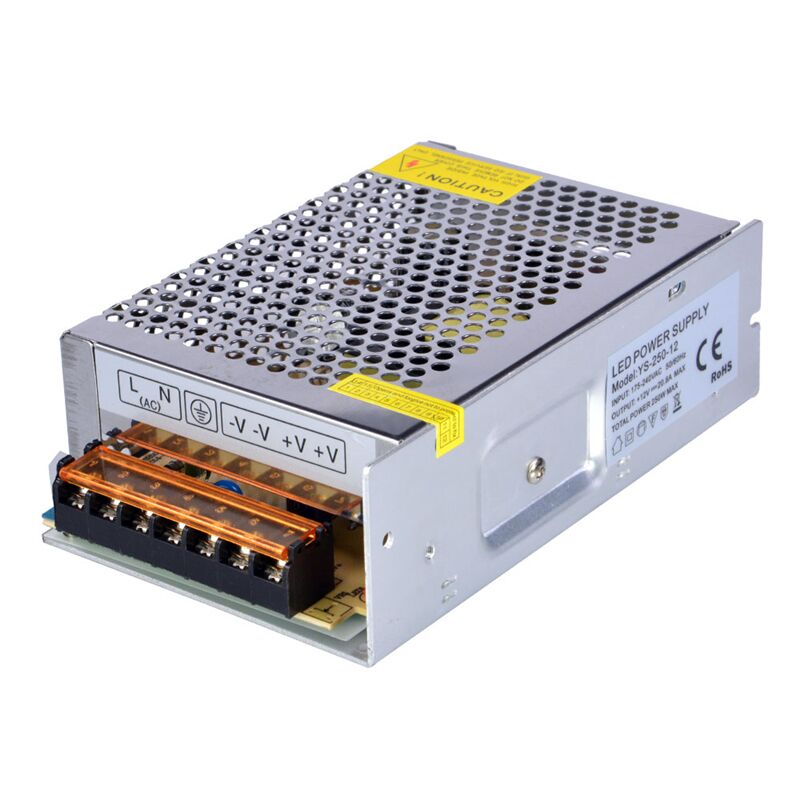

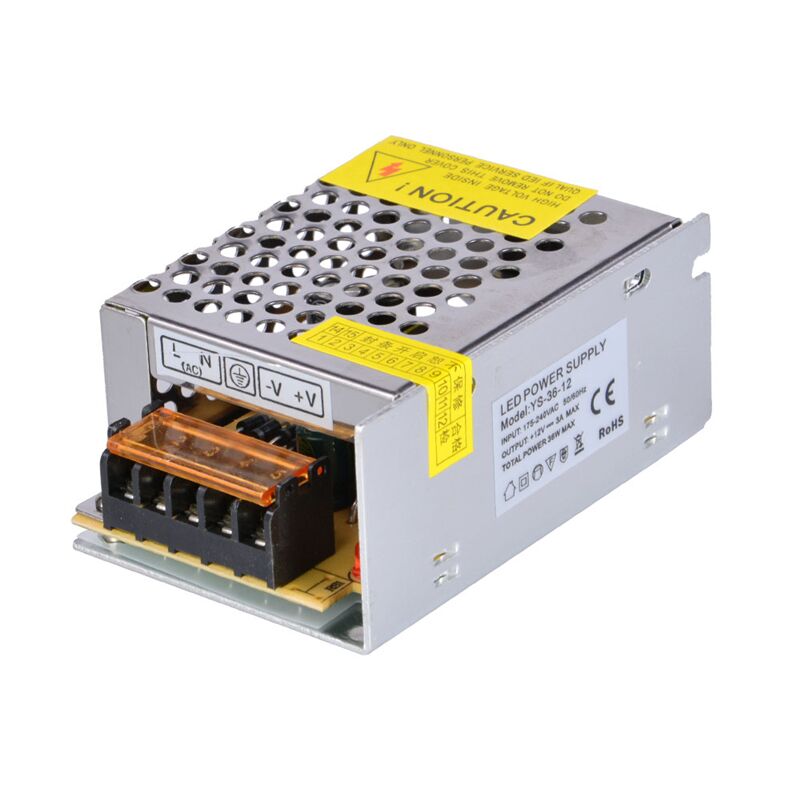

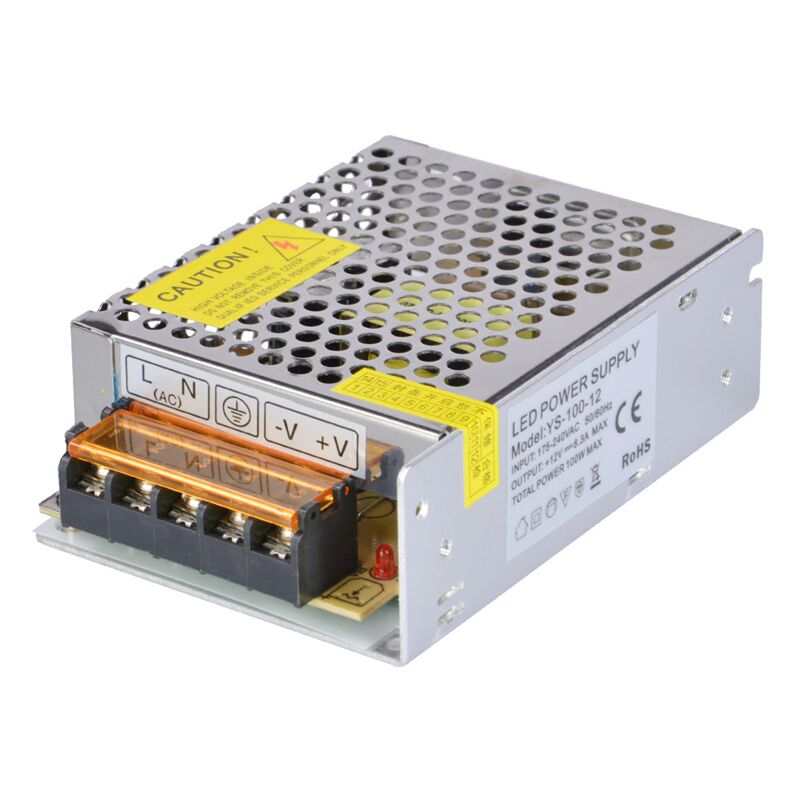

Standard Indoor LED Power Supply Economic
Standard metal power supply IP20.Power range from 25W to 250W, High efficiency with sufficient power
2 hours 100% full-load burn-in test before shipping; OVP, OLP, OTP and short circuit protection programmed
CE ROHS FCC certified
Additional information
| Power | 36W, 60W, 100W, 120W, 150W, 200W, 250W, 300W |
|---|---|
| Input | 100-240V, 175-240V |
| Output | 5V, 12V, 24V |
Product Processes
Standard Indoor LED Power Supply Economic
Also called Driver, it is ideal for LED products requiring 12V voltage and power up to 300W.
Range 36 watts to 300 watts, without a fan
12VDC 36W to 300W
24VDC 36W to 300W
Product Details:
Choosing the Right LED Power Supplies for Your Lighting Needs
Discover the importance of LED power supplies for optimal brightness and longevity of your lighting fixtures. Understand the significance of current and voltage in LED strips.
| Series No. | Power (W) | AC input (V) | DC output (V*A) | Water Level | Size(mm) | Weight (KG) | PCS/CTN | CTN Size | Total KG |
|---|---|---|---|---|---|---|---|---|---|
| YS-36-12 | 36W | 175-240V | 12V/24V | IP20 | 85*58*30 | 0.12 | 100 | 435*340*210 | 12.56 |
| YS-60-12 | 60W | 175-240V | 12V/24V | IP20 | 85*58*30 | 0.15 | 100 | 435*340*210 | 14.54 |
| YS-100-12 | 100W | 175-240V | 12V/24V | IP20 | 110*78*32 | 0.21 | 100 | 435*430*265 | 22.31 |
| YS-120-12 | 120W | 175-240V | 12V/24V | IP20 | 130*98*36 | 0.33 | 100 | 435*430*265 | 22.31 |
| YS-150-12 | 150W | 175-240V | 12V/24V | IP20 | 130*98*36 | 0.33 | 60 | 475*330*295 | 20.24 |
| YS-250-12 | 250W | 175-240V | 12V/24V | IP20 | 160*98*40 | 0.51 | 60 | 570*330*360 | 31.04 |
