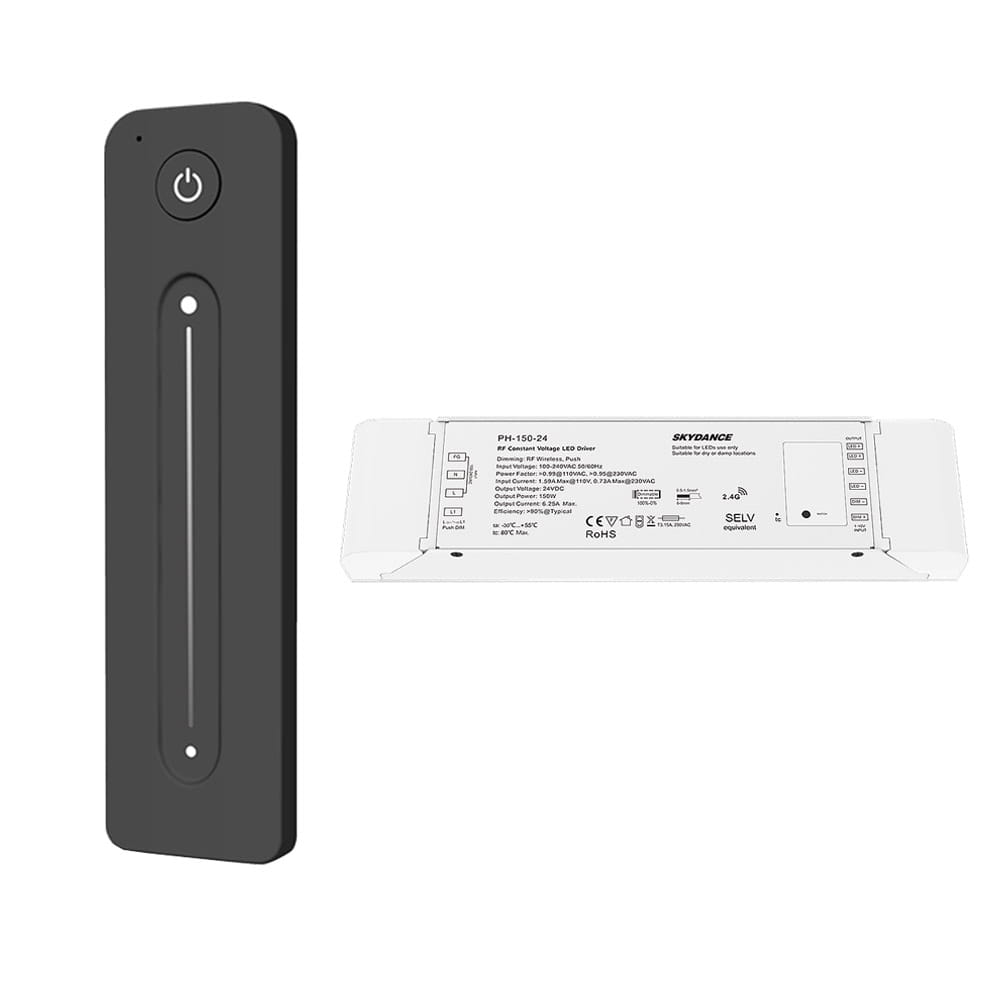

Led controller LED dimmer power supply 12V 150W Mono 1 zone Remote control + power supply set

RGB LED Controllers and LED dimmers

LED radio dimmer set is a ready-made assortment consisting of remote control and LED receiver, which allows you to control monochromatic LED lighting (e.g., monochrome LED strip). This dimmer allows individual access and operation of one zone, which can be accessed by radio remote control. Communication with the receiver is fully wireless, as it uses a radio signal at the level of 2.4 GHz.

Characteristic functions for the set

Dimming and brightening the connected LED lighting
Switching on and off the connected LED lighting
Immediate reduction of brightness (night mode)



Basic communication with the power supply is via radio. Obtaining optional control via Wi-Fi, which allows control of the lighting using mobile devices (e.g. smartphone or tablet), is available only with the appropriate Wi-Fi module.

Explore Product Series – Kits

Included above product is a ready-made kit that allows complete control of the installation based on LED lighting. The appropriate selection of components characterizes such a set, ensuring the exact correctness of operation and communication so that our LED radio controller or LED dimmer will be properly matched. This product variant can be individually configured by selecting receiving devices, which significantly facilitates the use of the product card.

Wireless form of communication – eliminating key disadvantages

Devices using wireless communication based on a radio path of a specific frequency must entirely accurately receive the signal sent and transmit it to the device’s output. Unfortunately, this signal is often exposed to various types of interference resulting from external factors, making using a larger number of LED receivers once troublesome. The solution offered by the presented products is undoubtedly the automatic synchronization of the radio signal with its Retransmission. This allows for simultaneous switching of multiple receivers without delay effect. It is essential in multi-color LED Strip Lights, where signal synchronization plays a key role in established dynamic programs. On the other hand, Retransmission increases the basic communication range, which undoubtedly increases the practicality of the LED installation.

Dimming curve – performance characteristics

Logarithmic dimming is characterized by a disproportionate change of the PWM signal about the set brightness. Low values of LED dimming implemented, for example, through a sensitive remote control or a wall panel, will be visible on the connected lighting, especially at low values. According to the presented characteristics, when setting the brightness level on the LED dimmer to 40%, we will obtain a PWM value of ~20%. So using 1/5 of the dimming level range for the LED dimmer, the connected lighting, e.g., LED tape, will obtain almost half of the brightness. At higher values >50%, the logarithmic dimming is more linear and smooth. Such a large discrepancy at low values requires adequate sensitivity to determine the desired brightness level. So for this type of dimming, it is important to use a convenient and high-quality LED dimmer. Discover unique features of LED remote controls

You can fine tune how dim you want your lights or just jump right to 25% or 50%
